Inflection

Inflection governs how things are named whilst building your PostGraphile schema. "Inflection" is the system of naming things; it's composed of a large set of named functions, and we call each of these inflection functions an "inflector."

The inflectors that you have available will depend on the plugins and presets you're using. To get a list of the inflectors available to you, you can use TypeScript autocompletion, or if you're a sponsor you can install the graphile package and run yarn graphile inflection list (or equivalent for other package managers).

In GraphQL, types typically use singular UpperCamelCase (PascalCase); fields, arguments and directives typically use camelCase; and enum values typically use CONSTANT_CASE. These conventions can be seen in the GraphQL specification itself. The default inflectors attempt to map things to natural names in GraphQL whilst avoiding naming conflicts. For example:

• Table names are singularized and changed to UpperCamelCase: pending_users → PendingUser
• Column names are changed to camelCase: created_at → createdAt
• Relations reference the target type and the referencing columns: postsByAuthorId (see "advice" below about making this shorter!)

But if you don't want this (or it's doing something wrong), then you can fix it by overriding inflectors!

Overriding Naming - One-off

If you want to rename just one field or type, your best bet is to use a smart tag; e.g. for a table you might do:

COMMENT ON TABLE post IS E'@name message';

note

Each inflector is responsible for checking for any relevant smart tags and honouring them.

Overriding Inflection

You can easily write a plugin to override an individual inflector, it just needs to add the new inflector under the inflection.replace object; an example might look like:

export default {
  name: "ReplacePatchTypeInflectorPlugin",
  version: "0.0.0",

  inflection: {
    replace: {
      patchType(previous, resolvedPreset, typeName) {
        return this.upperCamelCase(`${typeName}-change-set`);
      },
    },
  },
};

In this example, previous is the previous inflector (in case you only want to override in certain circumstances) - you would call it using the same arguments, just dropping the first two - so in this case: previous(typeName).

tip

TypeScript is your friend when replacing inflectors, it should know what inflectors are available, their documentation, and the types of all their arguments.

Advice

By default, the relation field names are explicit to avoid accidental conflicts, and can make your schema somewhat verbose, e.g. userByAuthorId, userByEditorId, userByPublisherId, etc.

Some people like this verbosity; however if you, like us, prefer shorter names then we encourage you use the @graphile/simplify-inflection plugin. This would automatically change those fields to be named author, editor and publisher respectively.

graphile.config.mjs

import { PgSimplifyInflectionPreset } from "@graphile/simplify-inflection";

const preset = {
  extends: [
    PgSimplifyInflectionPreset,
    //...
  ],
  //...
};

Our maintainer, Benjie, prefers to use this plugin in all his projects.

Listing available inflectors

We've built a command into our sponsors-only graphile development assistant to help you determine all the inflectors available to you:

npm

npm install --save-dev graphile@beta
npx graphile inflection list

Yarn

yarn add --dev graphile@beta
npx graphile inflection list

pnpm

pnpm add --save-dev graphile@beta
npx graphile inflection list

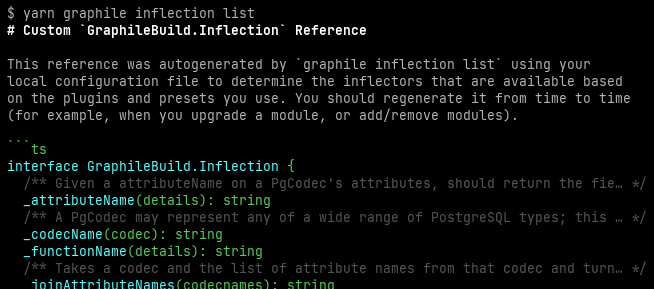

Screenshot showing the initial output of the graphile inflection list command, including a summary of the available inflectors and their arguments.

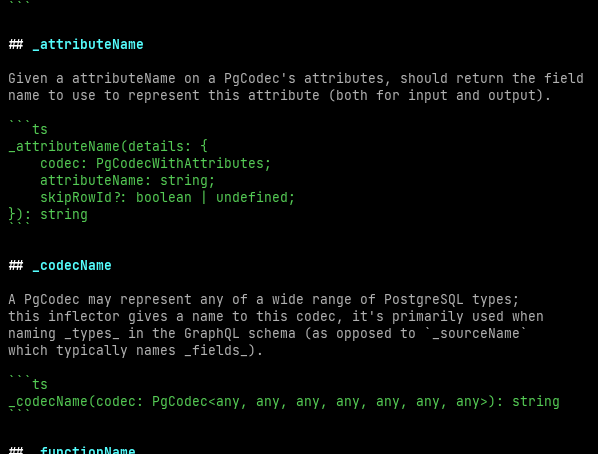

Screenshot from lower down in the output of the graphile inflection list command, detailing each inflector, its documentation and its rough TypeScript definition.
